제품 상세 정보:
|
모델 부정.: | II 주도하는 700/500 | 1 M에 있는 포쿠스러블 라이트 필드 사이즈: | 160~300mm |
---|---|---|---|
중심 조명: | 40, 000~160, 000 럭스 | 색 온도: | 4300 K |
색지수 Ra: | >95 | 가벼운 삶의 효과적입니다: | >50, 000 시간 |
강조하다: | 160000개 럭스 LED OT Light,160000 럭스 섀도레스스 외과수술상의 광,오스람 LED OT 빛 |

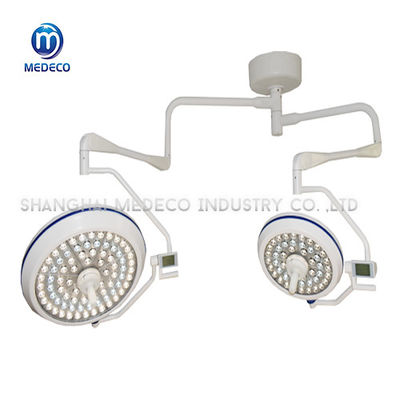

Medical Equipment light Double Dome Ceiling Type Osram LED Bulb LED Operating Shadowless Surgical Lamp 700/500
Features:
Germany imported Osram LED medical light source is adopted
II LED Touch pad control system is developed for adjustment control of power switch, brightness switch, illumination level, color temperature, color rendering index, to meet medical personnel requirement of variant operation.
Cold infrared-free light
In comparison to conventional halogen and gas discharge lamps, the "cold" II LED light allowing for fatigue-free operating and prevents tissue from drying out in the operation field at the head area of the surgeon.
Shadow-free Illumination
The relation between light body and light field diameter guarantees an optimum illumination of the OT field in terms of area and depth.
High Luminance with optimum color rendering
Designed to provide a light output with a color rendering index and color temperature which is very close to natural daylight.This helps the surgeon to distinguish between pathological and healthy tissue.
Optimum design for clean air ceilings (Laminar Air Flow)
The perfect design reduce the airflow surface beneath the ventilated ceiling, Flow- optimized light head and reduced surface temperature minimise turbulence in laminar air flow.
Long-lasting light sources, environmentally friendly
With a life cycle of at least 50, 000 operational hours, an LED provides illumination many times longer than conventional lighting.In addition, each LED can be replaced individually and on site.
The Germany ondal and Chinese arm system option
As a flexible lighting solution, II LED light can be individually combined with different support arm solutions, enabling it to be used as needed in different operating theatres.
TECHNICAL SPECIFICATIONS FOR LED LIGHT
Technical specifications for lights | II LED700 | II LED500 |
Central illuminance at 1m working distance | 40,000~18,0000 lux | 40,000~160,000 lux |
Focusable light-field size at 1 m distance | 120~300mm | 120~300mm |
Colour temperature | 3500~5000K | 3500~5000K |
Depth of Focus | >700mm | >700mm |
Colour Index Ra | 95 | 95 |
Power Supply | 110~240V 50/60Hz | 110~240V 50/60Hz |
Effective bulb service life | >50,000h | >50,000h |
Diameter of lamp housing | 700mm | 550mm |
Power consumption of light heads(W) | 60 | 48 |
Installation height (Ceiling type) | 280-320 cm | 280-320 cm |
